H-1003

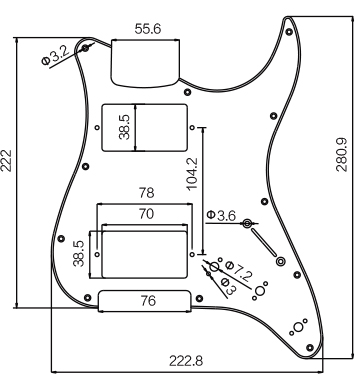

Technical drawingH-1003
Description
H-1003 is an 11-hole Stratocaster-style pickguard, 222.8 × 280.9 mm, with HH humbucker cutouts 70 × 38.5 mm and perimeter mount holes φ3.2 mm.
Pickguard specs
- Overall width 222.8 mm (8.772 in)
- Overall length 280.9 mm (11.059 in)
- Mount hole diameter φ3.2 mm
- Mount spacing 104.2 mm (4.102 in)
- Layout reference HH layout; 11 perimeter mount holes φ3.2 mm; humbucker cutouts 70 × 38.5 mm (78 mm outer ear); lateral pickup mounting spacing 104.2 mm; neck pocket 55.6 mm; bridge cutout 76 mm; switch holes φ3.6 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Dual humbucker routing with 78 mm outer mounting ear width
- Control hole φ7.2 mm with blade switch slot
About measurements
- Mount hole spacing
-
104.2 mm (4.102 in)
Center-to-center distance between mounting holes on the bridge plate.
