H-1002

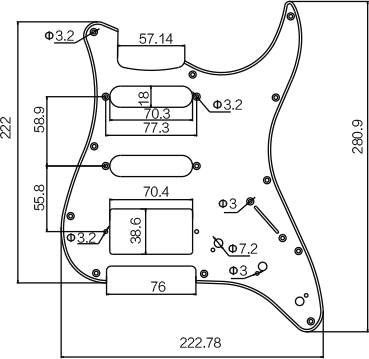

Technical drawingH-1002
Description
H-1002 is an 11-hole Stratocaster-style pickguard, 222.78 × 280.9 mm, with SSH layout (neck/middle single-coil 70.3 × 18 mm, bridge humbucker 70.4 × 38.6 mm) and mount holes φ3.2 mm.
Pickguard specs
- Overall width 222.78 mm (8.771 in)
- Overall length 280.9 mm (11.059 in)
- Mount hole diameter φ3.2 mm
- Mount spacing 77.3 mm (3.043 in)
- Layout reference SSH layout; 11 perimeter mount holes φ3.2 mm; neck SC 70.3 × 18 mm, bridge HB 70.4 × 38.6 mm; neck-to-middle 58.9 mm, middle-to-bridge 55.8 mm; neck pocket 57.14 mm; bridge cutout 76 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Bridge humbucker cutout 70.4 × 38.6 mm
- Control holes φ7.2 mm and φ3 mm with blade switch slot
About measurements
- Mount hole spacing
-
77.3 mm (3.043 in)
Center-to-center distance between mounting holes on the bridge plate.
