H-1004

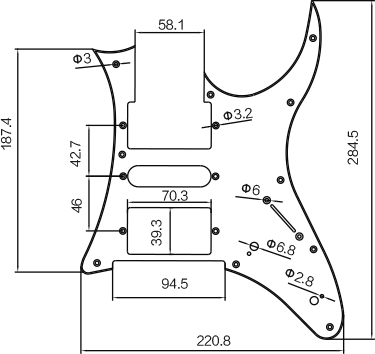

Technical drawingH-1004
Description
H-1004 is an 11-hole HSH pickguard, 220.8 × 284.5 mm, with bridge humbucker cutout 70.3 × 39.3 mm and perimeter mount holes φ3 mm.
Pickguard specs
- Overall width 220.8 mm (8.693 in)
- Overall length 284.5 mm (11.201 in)
- Mount hole diameter φ3 mm
- Mount spacing 42.7 mm (1.681 in)
- Layout reference HSH layout; 11 perimeter mount holes φ3 mm, pickup holes φ3.2 mm; neck cutout 58.1 mm; bridge HB 70.3 × 39.3 mm; bottom cutout 94.5 mm; neck-HB to middle 42.7 mm, middle to bridge HB 46 mm; control holes φ6, φ6.8, φ2.8 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Large bottom rectangular cutout 94.5 mm wide
- Left edge partial height 187.4 mm
About measurements
- Mount hole spacing
-
42.7 mm (1.681 in)
Center-to-center distance between mounting holes on the bridge plate.
