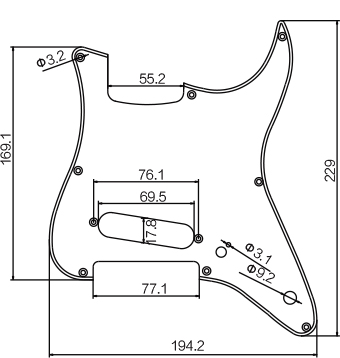

Technical drawingH-1010
Description
H-1010 is an 8-hole contoured pickguard, 194.2 × 229 mm, with a slanted single-coil cutout 69.5 × 17.8 mm and perimeter mount holes φ3.2 mm.
Pickguard specs
- Overall width 194.2 mm (7.646 in)
- Overall length 229 mm (9.016 in)
- Mount hole diameter φ3.2 mm
- Mount spacing 76.1 mm (2.996 in)
- Layout reference 8 perimeter mount holes φ3.2 mm; middle pickup screw spacing 76.1 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Neck cutout 55.2 mm wide
- Bridge cutout 77.1 mm wide
- Slanted single-coil cutout 69.5 × 17.8 mm
- Control holes φ3.1 mm and φ9.2 mm
About measurements
- Mount hole spacing
-
76.1 mm (2.996 in)
Center-to-center distance between mounting holes on the bridge plate.
