H-1013

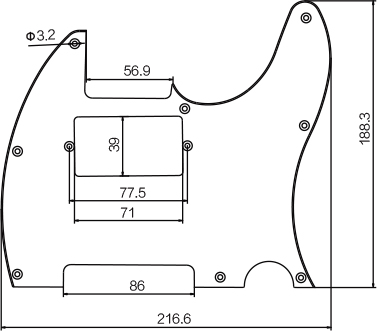

Technical drawingH-1013
Description
H-1013 is a Telecaster-style 8-hole pickguard, 216.6 × 188.3 mm, with humbucker cutout 71 × 39 mm and mount holes φ3.2 mm.
Pickguard specs
- Overall width 216.6 mm (8.528 in)
- Overall length 188.3 mm (7.413 in)
- Mount hole diameter φ3.2 mm
- Mount spacing 77.5 mm (3.051 in)
- Layout reference 8 perimeter mount holes φ3.2 mm; humbucker pickup screw spacing 77.5 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Neck pocket cutout 56.9 mm wide
- Humbucker cutout 71 × 39 mm
- Control-plate cutout 86 mm wide
- Bridge clearance notch on lower right
About measurements
- Mount hole spacing
-
77.5 mm (3.051 in)
Center-to-center distance between mounting holes on the bridge plate.
