H-1011

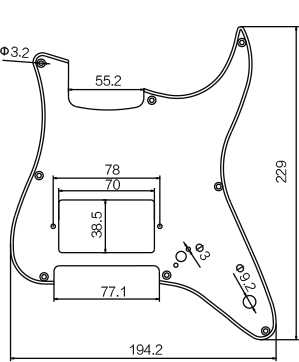

Technical drawingH-1011
Description
H-1011 is an 8-hole contoured pickguard, 194.2 × 229 mm, with a humbucker cutout 70 × 38.5 mm and perimeter mount holes φ3.2 mm.
Pickguard specs
- Overall width 194.2 mm (7.646 in)
- Overall length 229 mm (9.016 in)
- Mount hole diameter φ3.2 mm
- Mount spacing 78 mm (3.071 in)
- Layout reference 8 perimeter mount holes φ3.2 mm; humbucker pickup screw spacing 78 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Neck cutout 55.2 mm wide
- Lower cutout 77.1 mm wide
- Humbucker cutout 70 × 38.5 mm
- Control holes φ3 mm and φ9.2 mm
About measurements
- Mount hole spacing
-
78 mm (3.071 in)
Center-to-center distance between mounting holes on the bridge plate.
