H-1014

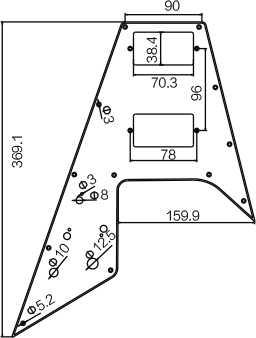

Technical drawingH-1014
Description
H-1014 is a Flying V pickguard, 369.1 mm deep, with dual humbucker cutouts and perimeter mount holes φ3 mm.
Pickguard specs
- Overall length 369.1 mm (14.531 in)
- Mount hole diameter φ3 mm
- Mount spacing 96 mm (3.78 in)
- Layout reference Top edge 90 mm; right wing 159.9 mm; 12 perimeter mount holes φ3 mm; pickup mounting screw spacing 96 mm vertical; no single overall width on drawing
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Upper humbucker cutout 70.3 × 38.4 mm
- Lower humbucker cutout 78 mm wide
- Control holes φ8 mm, φ10 mm, and φ12.5 mm
- Tip hole φ5.2 mm
About measurements
- Mount hole spacing
-
96 mm (3.78 in)
Center-to-center distance between mounting holes on the bridge plate.
