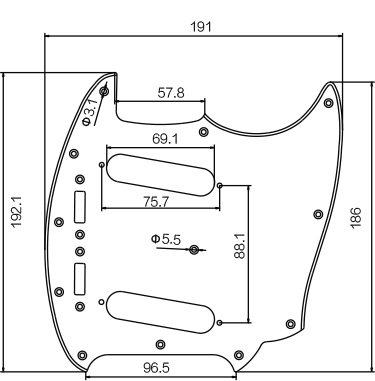

Technical drawingH-1015
Description
H-1015 is a Mustang-style pickguard, 191 × 192.1 mm, with two slanted single-coil cutouts and perimeter mount holes φ3.1 mm.
Pickguard specs
- Overall width 191 mm (7.52 in)
- Overall length 192.1 mm (7.563 in)
- Mount hole diameter φ3.1 mm
- Mount spacing 75.7 mm (2.98 in)
- Layout reference Perimeter mount holes φ3.1 mm; pickup screw spacing 75.7 mm horizontal and 88.1 mm vertical; center hole φ5.5 mm; right edge height 186 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Two slanted single-coil cutouts 69.1 mm wide
- Two slide-switch slots on left wing
- Neck cutout 57.8 mm wide
- Bridge cutout 96.5 mm wide
- Center hole φ5.5 mm
About measurements
- Mount hole spacing
-
75.7 mm (2.98 in)
Center-to-center distance between mounting holes on the bridge plate.
