Description

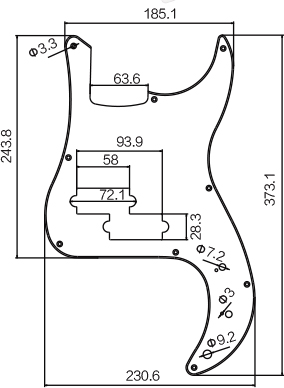

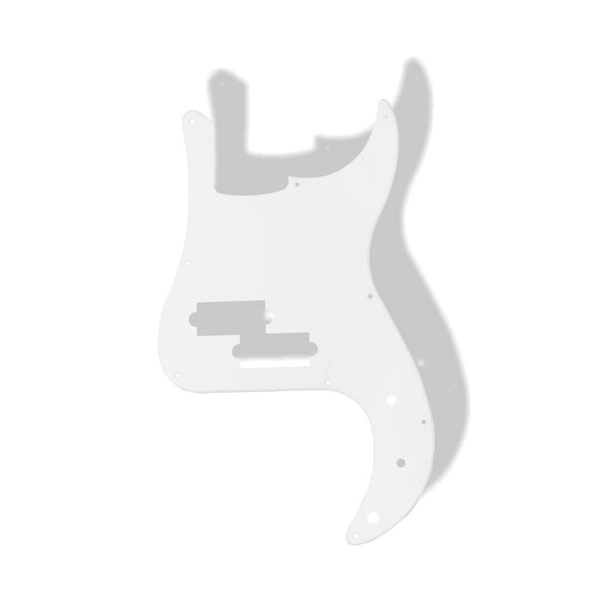

H-2002 is a Precision Bass pickguard, 230.6 × 373.1 mm, with split-coil cutout and 13 mount holes φ3.3 mm.
Pickguard specs
- Overall width 230.6 mm (9.079 in)
- Overall length 373.1 mm (14.689 in)
- Mount hole diameter φ3.3 mm
- Layout reference 13 mount holes φ3.3 mm; top width 185.1 mm; body height to lower curve 243.8 mm; no center-to-center spacing dimensioned on drawing
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Neck pocket cutout 63.6 mm wide
- Split-coil cutout 93.9 mm wide overall
- Single-coil sections 58 × 28.3 mm
- Middle section width 72.1 mm
- Control holes φ7.2 mm, φ3 mm, and φ9.2 mm
About measurements
- Mount hole spacing
-
13 mount holes φ3.3 mm; top width 185.1 mm; body height to lower curve 243.8 mm; no center-to-center spacing dimensioned on drawing
Center-to-center distance between mounting holes on the bridge plate.
