H-2003

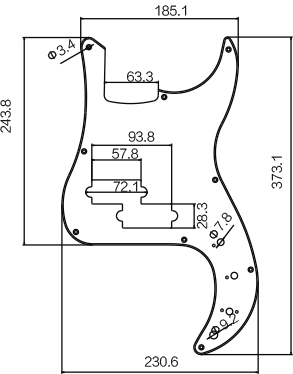

Technical drawingH-2003
Description
H-2003 is a Precision Bass pickguard, 230.6 × 373.1 mm, with split-coil cutout and 13 mount holes φ3.4 mm.
Pickguard specs
- Overall width 230.6 mm (9.079 in)
- Overall length 373.1 mm (14.689 in)
- Mount hole diameter φ3.4 mm
- Layout reference 13 mount holes φ3.4 mm; top width 185.1 mm; partial height 243.8 mm; no center-to-center spacing dimensioned on drawing
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Neck pocket cutout 63.3 mm wide
- Split-coil cutout 93.8 mm wide overall
- Upper segment 57.8 mm wide
- Lower segment with tabs 72.1 mm wide
- Segment height 28.3 mm
- Control holes φ7.8 mm and two φ9.2 mm
About measurements
- Mount hole spacing
-
13 mount holes φ3.4 mm; top width 185.1 mm; partial height 243.8 mm; no center-to-center spacing dimensioned on drawing
Center-to-center distance between mounting holes on the bridge plate.
