H-2005

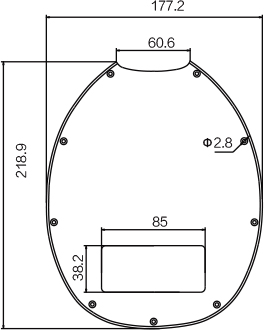

Technical drawingH-2005
Description
Oval pickguard 177.2 × 218.9 mm with 85 × 38.2 mm pickup cutout, 60.6 mm top notch, and 9 × Φ2.8 mm mounting holes.
Pickguard specs
- Overall width 177.2 mm (6.976 in)
- Overall length 218.9 mm (8.618 in)
- Mount hole diameter φ2.8 mm
- Layout reference 9 mounting holes.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Top notch 60.6 mm wide
- pickup cutout 85 × 38.2 mm.
About measurements
- Mount hole spacing
-
9 mounting holes.
Center-to-center distance between mounting holes on the bridge plate.
