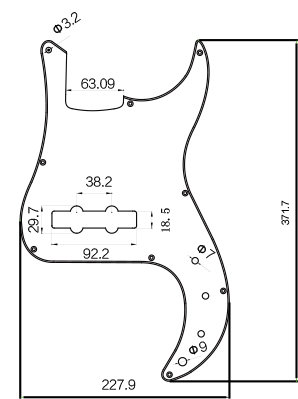

Technical drawingH-2004
Description
H-2004 is a Precision Bass pickguard, 227.9 × 371.7 mm, with split-coil cutout and 13 mount holes φ3.2 mm.
Pickguard specs
- Overall width 227.9 mm (8.972 in)
- Overall length 371.7 mm (14.634 in)
- Mount hole diameter φ3.2 mm
- Layout reference 13 mount holes φ3.2 mm; single-coil screw-ear spacing 38.2 mm; no perimeter center-to-center spacing dimensioned on drawing
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Neck pocket cutout 63.09 mm wide
- Split-coil cutout 92.2 mm wide overall
- Rectangular sections 18.5 mm high
- Cutout max height 29.7 mm including screw ears
- Control holes φ7 mm and φ9 mm
About measurements
- Mount hole spacing
-
13 mount holes φ3.2 mm; single-coil screw-ear spacing 38.2 mm; no perimeter center-to-center spacing dimensioned on drawing
