H-3011

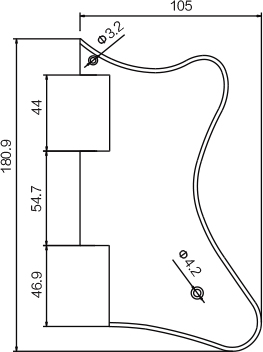

Technical drawingH-3011
Description
Pickguard 105 × 180.9 mm with dual pickup cutouts and Φ3.2 / Φ4.2 mm mounting holes.
Pickguard specs
- Overall width 105 mm (4.134 in)
- Overall length 180.9 mm (7.122 in)
- Mount hole diameter φ3.2 mm
- Layout reference Upper mount hole Φ3.2 mm; lower mount hole Φ4.2 mm.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Pickup cutouts 44.0 mm and 46.9 mm high, 54.7 mm apart.
- Perimeter mounting hole pattern per drawing
About measurements
- Mount hole spacing
-
Upper mount hole Φ3.2 mm; lower mount hole Φ4.2 mm.
Center-to-center distance between mounting holes on the bridge plate.
