PICKGUARDS
Request a quote → H-3013
H-3013

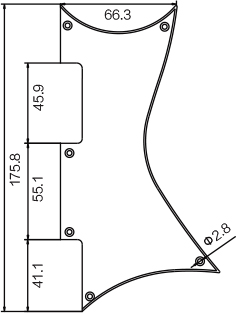

Technical drawingH-3013
Description
Pickguard 66.3 × 175.8 mm (top width) with dual pickup cutouts and 6 × Φ2.8 mm mounting holes.
Pickguard specs
- Overall width 66.3 mm (2.61 in)
- Overall length 175.8 mm (6.921 in)
- Mount hole diameter φ2.8 mm
- Layout reference 6 mounting holes.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Pickup cutouts 45.9 mm and 41.1 mm high, 55.1 mm apart.
- Perimeter mounting hole pattern per drawing
About measurements
- Mount hole spacing
-
6 mounting holes.
Center-to-center distance between mounting holes on the bridge plate.
