H-3014

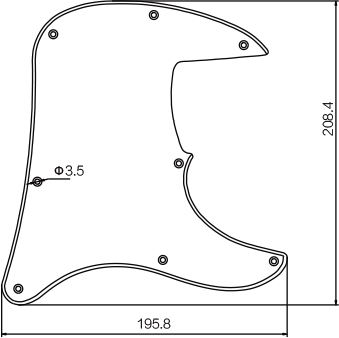

Technical drawingH-3014
Description
Pickguard 195.8 × 208.4 mm with 8 × Φ3.5 mm mounting holes.
Pickguard specs
- Overall width 195.8 mm (7.709 in)
- Overall length 208.4 mm (8.205 in)
- Mount hole diameter φ3.5 mm
- Layout reference 8 mounting holes.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- 8-hole perimeter pattern
- no pickup routing shown.
About measurements
- Mount hole spacing
-
8 mounting holes.
Center-to-center distance between mounting holes on the bridge plate.
