Truss rod cover
Request a quote → HA-2041
HA-2041

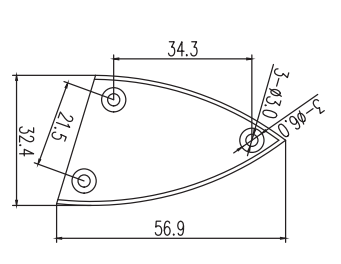

Technical drawingHA-2041
Description
HA-2041 truss rod cover, 56.9 × 32.4 mm curved triangular plate, φ3 mm 3-hole mount.
Headstock plate specs
- Overall width 32.4 mm (1.276 in)
- Bottom width 32.4 mm (1.276 in)
- Overall length 56.9 mm (2.24 in)
- Hole diameter φ3 mm
- Mount spacing 21.5 mm (0.846 in)
- Reference Left hole pair on 21.5 mm centers; tip hole center 34.3 mm horizontally from top-left hole; countersunk outer φ6 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Curved triangular outline 56.9 mm long × 32.4 mm wide left edge
- φ3 mm through-holes with φ6 mm countersink on 21.5 mm / 34.3 mm 3-hole layout
About measurements
- Mount hole spacing
-
21.5 mm (0.846 in)
Center-to-center distance between mounting holes on the bridge plate.
