Truss rod cover
Request a quote → HA-2044
HA-2044

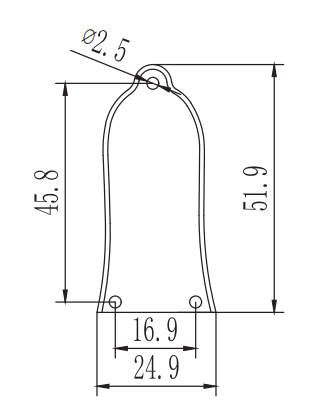

Technical drawingHA-2044
Description
HA-2044 truss rod cover, 51.9 × 24.9 mm bell profile, φ2.5 mm 3-hole mount.
Headstock plate specs
- Overall width 24.9 mm (0.98 in)
- Bottom width 24.9 mm (0.98 in)
- Overall length 51.9 mm (2.043 in)
- Hole diameter φ2.5 mm
- Mount spacing 16.9 mm (0.665 in)
- Reference Bottom hole pair on 16.9 mm centers; top hole center 45.8 mm from bottom edge.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Bell profile 51.9 mm tall × 24.9 mm base
- φ2.5 mm holes on 16.9 mm / 45.8 mm 3-hole layout
About measurements
- Mount hole spacing
-
16.9 mm (0.665 in)
Center-to-center distance between mounting holes on the bridge plate.
