Truss rod cover
Request a quote → HA-2045
HA-2045

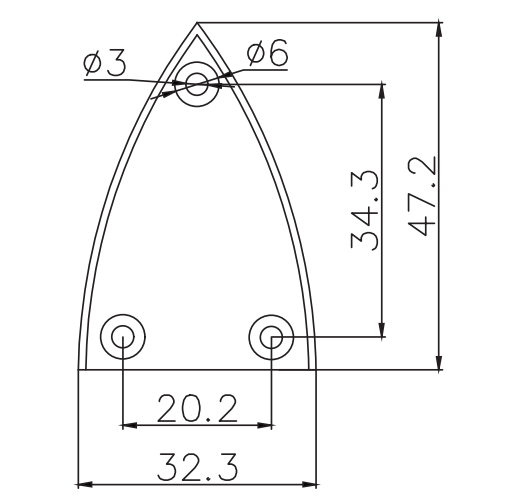

Technical drawingHA-2045
Description
HA-2045 truss rod cover, 47.2 × 32.3 mm bell profile, φ3 mm 3-hole mount.
Headstock plate specs
- Overall width 32.3 mm (1.272 in)
- Bottom width 32.3 mm (1.272 in)
- Overall length 47.2 mm (1.858 in)
- Hole diameter φ3 mm
- Mount spacing 20.2 mm (0.795 in)
- Reference Bottom hole pair on 20.2 mm centers; tip hole center 34.3 mm above bottom hole line; countersunk outer φ6 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Bell profile 47.2 mm tall × 32.3 mm base, curved sides to sharp tip
- φ3 mm through-holes with φ6 mm countersink on 20.2 mm / 34.3 mm 3-hole layout
About measurements
- Mount hole spacing
-
20.2 mm (0.795 in)
Center-to-center distance between mounting holes on the bridge plate.
