Truss rod cover
Request a quote → HA-2042
HA-2042

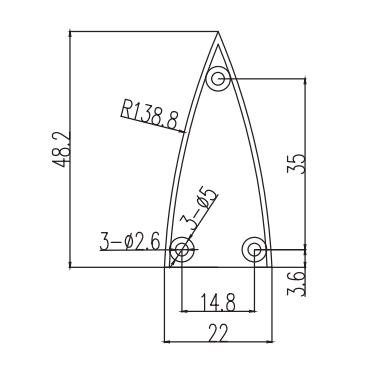

Technical drawingHA-2042
Description
HA-2042 truss rod cover, 48.2 × 22 mm curved triangular plate, φ2.6 mm 3-hole mount.
Headstock plate specs
- Overall width 22 mm (0.866 in)
- Bottom width 22 mm (0.866 in)
- Overall length 48.2 mm (1.898 in)
- Hole diameter φ2.6 mm
- Mount spacing 14.8 mm (0.583 in)
- Reference Bottom hole pair on 14.8 mm centers, 3.6 mm from bottom edge; tip hole center 35 mm above bottom hole line; side radius R138.8; countersunk outer φ5 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Curved triangular outline 48.2 mm tall × 22 mm base, R138.8 side radius
- φ2.6 mm through-holes with φ5 mm countersink on 14.8 mm / 35 mm 3-hole layout
About measurements
- Mount hole spacing
-
14.8 mm (0.583 in)
Center-to-center distance between mounting holes on the bridge plate.
