Truss rod cover
Request a quote → HA-2046
HA-2046

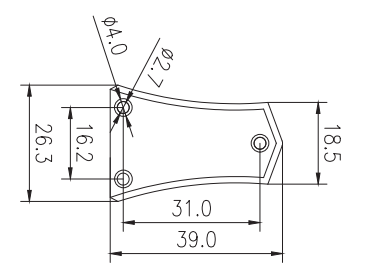

Technical drawingHA-2046
Description
HA-2046 truss rod cover, 39 × 26.3 mm chevron profile, φ2.7 mm 3-hole mount.
Headstock plate specs
- Overall width 26.3 mm (1.035 in)
- Bottom width 26.3 mm (1.035 in)
- Overall length 39 mm (1.535 in)
- Hole diameter φ2.7 mm
- Mount spacing 16.2 mm (0.638 in)
- Reference Left hole pair on 16.2 mm centers; tip hole center 31 mm horizontally from left hole line; right side height 18.5 mm; countersunk outer φ4 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Chevron profile 39 mm long × 26.3 mm straight left edge, pointed right tip
- φ2.7 mm through-holes with φ4 mm countersink on 16.2 mm / 31 mm 3-hole layout
About measurements
- Mount hole spacing
-
16.2 mm (0.638 in)
Center-to-center distance between mounting holes on the bridge plate.
