Truss rod cover
Request a quote → HA-2047
HA-2047

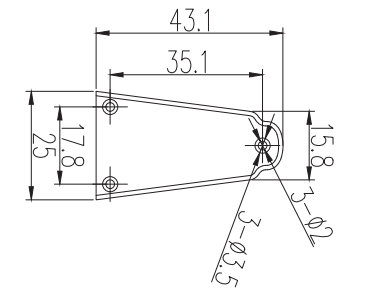

Technical drawingHA-2047
Description
HA-2047 truss rod cover, 43.1 × 25 mm tapered plate with rounded tip, φ2 mm 3-hole mount.
Headstock plate specs
- Overall width 25 mm (0.984 in)
- Bottom width 25 mm (0.984 in)
- Overall length 43.1 mm (1.697 in)
- Hole diameter φ2 mm
- Mount spacing 17.8 mm (0.701 in)
- Reference Left hole pair on 17.8 mm centers; tip hole center 35.1 mm from left hole line (43.1 mm overall to tip hole); rounded tip height 15.8 mm; countersunk outer φ3.5 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tapered profile 43.1 mm long × 25 mm flat left edge, rounded right tip
- φ2 mm through-holes with φ3.5 mm countersink on 17.8 mm / 35.1 mm 3-hole layout
About measurements
- Mount hole spacing
-
17.8 mm (0.701 in)
Center-to-center distance between mounting holes on the bridge plate.
