Truss rod cover
Request a quote → HA-2049
HA-2049

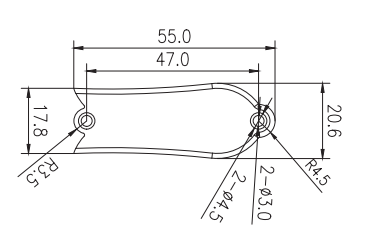

Technical drawingHA-2049
Description
HA-2049 truss rod cover, 55 × 20.6 mm elongated plate, φ3 mm 2-hole mount.
Headstock plate specs
- Overall width 20.6 mm (0.811 in)
- Bottom width 17.8 mm (0.701 in)
- Overall length 55 mm (2.165 in)
- Hole diameter φ3 mm
- Mount spacing 47 mm (1.85 in)
- Reference Two-hole layout on 47 mm centers; left end width 17.8 mm; countersunk outer φ4.5 mm; left notch R3.5, right tip R4.5.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Elongated plate 55 mm long × 20.6 mm right end / 17.8 mm notched left end
- φ3 mm through-holes with φ4.5 mm countersink on 47 mm centers
About measurements
- Mount hole spacing
-
47 mm (1.85 in)
Center-to-center distance between mounting holes on the bridge plate.
