Truss rod cover
Request a quote → HA-2051
HA-2051

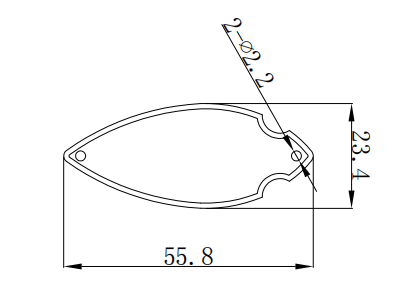

Technical drawingHA-2051
Description
HA-2051 truss rod cover, 55.8 × 23.4 mm arrowhead plate, φ2.2 mm 2-hole mount.
Headstock plate specs
- Overall width 23.4 mm (0.921 in)
- Bottom width 23.4 mm (0.921 in)
- Overall length 55.8 mm (2.197 in)
- Hole diameter φ2.2 mm
- Reference Two-hole layout (hole center spacing not dimensioned on drawing).
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Arrowhead profile 55.8 mm long × 23.4 mm max width, scalloped right end
- φ2.2 mm holes at left tip and right end
About measurements
- Mount hole spacing
-
Two-hole layout (hole center spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
