HJ-1011
HJ-1011
Loading 3D model…
Loading 3D model…
Description

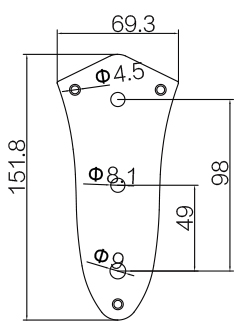

HJ-1011 teardrop control plate, 69.3 × 151.8 mm with φ4.5 / φ8.1 / φ8.0 mm control holes.
Control plate specs
- Overall width 69.3 mm (2.728 in)
- Overall length 151.8 mm (5.976 in)
- Hole diameter φ8.1 mm
- Reference Vertical control-hole spacing 49 mm and 98 mm from bottom center; four corner mount holes.
Hardware
- Material Plastic / metal plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Vertical control-hole spacing 49 mm and 98 mm from bottom center; four corner mount holes.
Center-to-center distance between mounting holes on the bridge plate.
