HJ-1012A

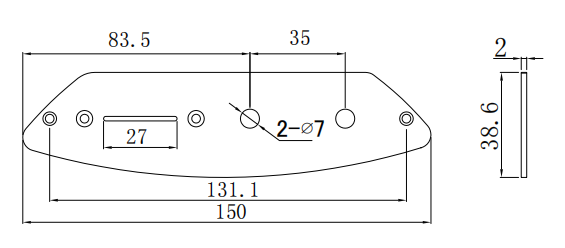

Technical drawingHJ-1012A
Description
HJ-1012A control plate, 150 × 38.6 mm, 2 mm thick, with 27 mm switch slot and two φ7 mm pot holes on 35 mm centers.
Control plate specs
- Overall width 150 mm (5.906 in)
- Overall length 38.6 mm (1.52 in)
- Body height 2 mm (0.079 in)
- Hole diameter φ7 mm
- Mount spacing 131.1 mm (5.161 in)
- Reference Four countersunk mount holes; first pot center 83.5 mm from left edge.
Hardware
- Material Plastic / metal plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
131.1 mm (5.161 in)
Center-to-center distance between mounting holes on the bridge plate.
