HJ-1013

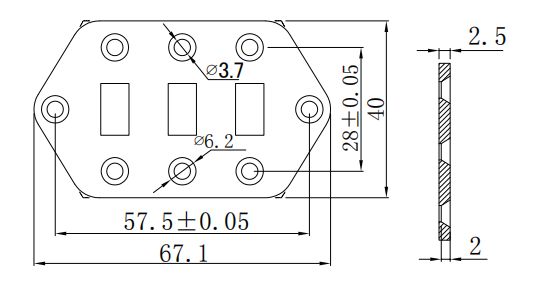

Technical drawingHJ-1013
Description
HJ-1013 hex-end control plate, 67.1 × 40 mm, 2.5 mm thick, with eight φ3.7 mm holes and three center slots.
Control plate specs
- Overall width 67.1 mm (2.642 in)
- Overall length 40 mm (1.575 in)
- Body height 2.5 mm (0.098 in)
- Hole diameter φ3.7 mm
- Reference Hole grid 57.5 × 28 mm centers; countersink φ6.2 mm.
Hardware
- Material Plastic / metal plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Hole grid 57.5 × 28 mm centers; countersink φ6.2 mm.
Center-to-center distance between mounting holes on the bridge plate.
