HJ-1014C

Control Plates

HJ-1014C

HJ-1014C

Request a quote →

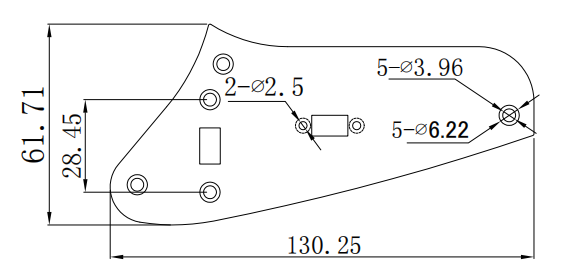

Technical drawingHJ-1014C

Description

HJ-1014C control plate, 130.25 × 61.71 mm with five countersunk φ3.96 mm holes and two switch cutouts.

Control plate specs

Overall width 130.25 mm (5.128 in)
Overall length 61.71 mm (2.43 in)
Hole diameter φ3.96 mm
Reference Countersink φ6.22 mm; left mount pair on 28.45 mm centers; switch pilot holes φ2.5 mm.

Hardware

Material Plastic / metal plate (standard)
Adjustment N/A
Finish More colors — see matching swatches

About measurements

Mount hole spacing

Countersink φ6.22 mm; left mount pair on 28.45 mm centers; switch pilot holes φ2.5 mm.

Center-to-center distance between mounting holes on the bridge plate.
