Description

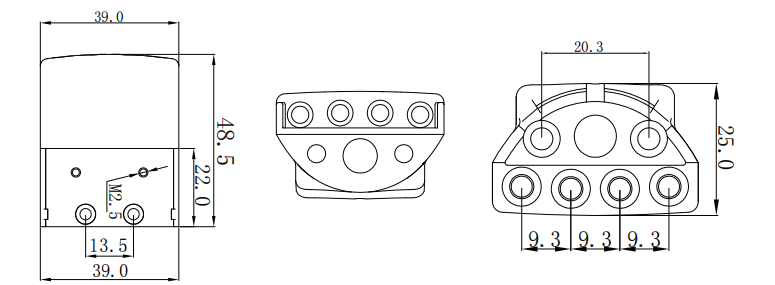

Bridge assembly 39 × 25 mm, body height 22 mm, overall height 48.5 mm, M2.5 fasteners.
Hardware part specs
- Overall width 39 mm (1.535 in)
- Overall length 25 mm (0.984 in)
- Body height 22 mm (0.866 in)
- Overall height 48.5 mm (1.909 in)
- Mount spacing 13.5 mm (0.531 in)
- Thread M2.5
- Reference Hole pattern 9.3×3; top spacing 20.3 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tall bridge with M2.5 hardware
About measurements
- Mount hole spacing
-
13.5 mm (0.531 in)
Center-to-center distance between mounting holes on the bridge plate.
