Description

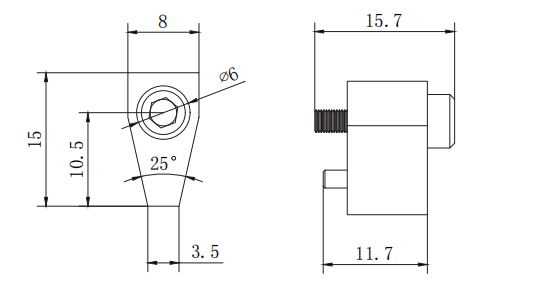

Tapered anchor block 15 mm tall, top width 8 mm, bottom width 3.5 mm, depth 15.7 mm, Φ6 bolt head.
Hardware part specs
- Outer diameter φ6 mm
- Overall width 8 mm (0.315 in)
- Overall length 15.7 mm (0.618 in)
- Body height 15 mm (0.591 in)
- Overall height 15 mm (0.591 in)
- Reference 25° taper; bolt center 10.5 mm from bottom; body depth 11.7 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tapered string anchor block
About measurements
- Mount hole spacing
-
25° taper; bolt center 10.5 mm from bottom; body depth 11.7 mm
Center-to-center distance between mounting holes on the bridge plate.
