Description

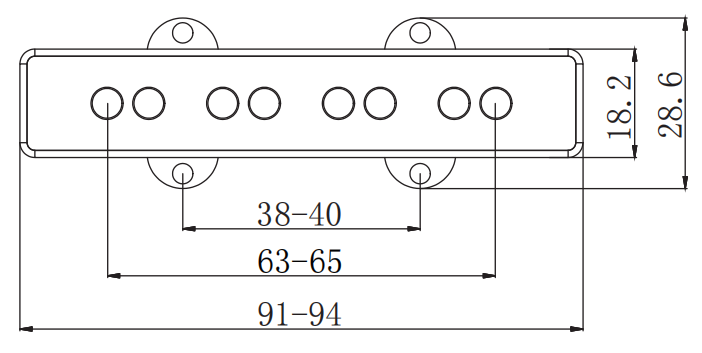

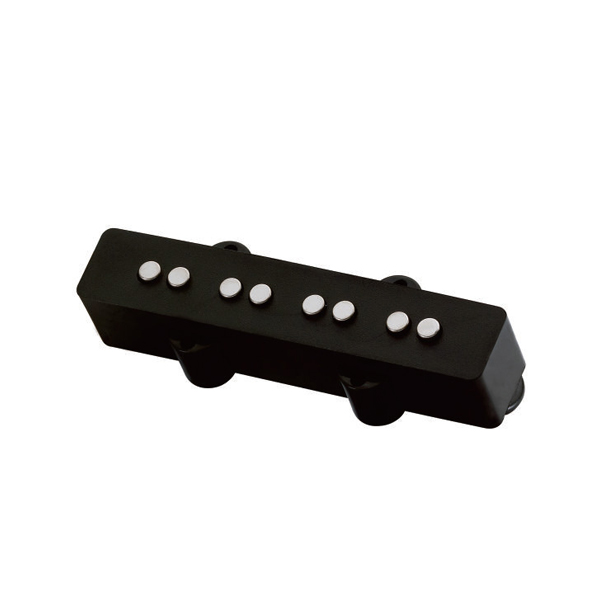

PB-2002 Jazz Bass pickup, 91–94 × 18.2 mm body with eight pole pieces on 63–65 mm spread.
Pickup specs
- String count 4-string
- String spread 64 mm (2.52 in)
- Overall width 18.2 mm (0.717 in)
- Overall length 93 mm (3.661 in)
- Mount spacing 39 mm (1.535 in)
- Reference Eight pole pieces in four pairs; mount spacing 38–40 mm; total width 28.6 mm.
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
39 mm (1.535 in)
Center-to-center distance between mounting holes on the bridge plate.
