QT-1016

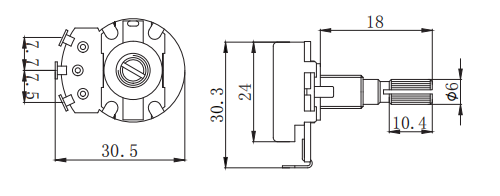

Technical drawingQT-1016
Description
QT-1016 full-size potentiometer, φ24 mm body, φ6 mm split shaft 18 mm long with 10.4 mm knurled section.
Potentiometer specs
- Outer diameter φ24 mm
- Overall width 30.5 mm (1.201 in)
- Overall height 30.3 mm (1.193 in)
- Shaft length 18 mm (0.709 in)
- Shaft diameter φ6 mm
- Reference Terminal spacing 7.7 mm and 7.5 mm.
Hardware
- Material Aluminum housing; shaft options: brass / aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Terminal spacing 7.7 mm and 7.5 mm.
Center-to-center distance between mounting holes on the bridge plate.
