QT-1018

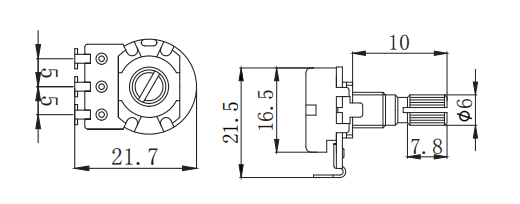

Technical drawingQT-1018
Description
QT-1018 compact potentiometer, 21.7 mm footprint, φ6 mm split shaft 10 mm long with 7.8 mm knurled section.
Potentiometer specs
- Overall width 21.7 mm (0.854 in)
- Body height 16.5 mm (0.65 in)
- Overall height 21.5 mm (0.846 in)
- Shaft length 10 mm (0.394 in)
- Shaft diameter φ6 mm
- Reference Terminal spacing 5 mm; short-shaft variant.
Hardware
- Material Aluminum housing; shaft options: brass / aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Terminal spacing 5 mm; short-shaft variant.
Center-to-center distance between mounting holes on the bridge plate.
