Description

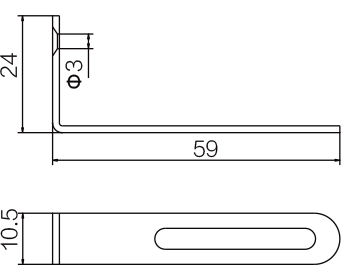

TJ-002 L-shaped pickguard bracket, 59 × 24 × 10.5 mm with φ3 mm hole and adjustment slot.
Pickguard bracket specs
- Overall width 10.5 mm (0.413 in)
- Overall length 59 mm (2.323 in)
- Body height 24 mm (0.945 in)
- Hole diameter φ3 mm
- Reference Longitudinal adjustment slot on horizontal arm; rounded arm end.
Hardware
- Material Steel / brass (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Longitudinal adjustment slot on horizontal arm; rounded arm end.
Center-to-center distance between mounting holes on the bridge plate.
