MANDOLIN PARTS
Request a quote → TJ-003
TJ-003
TJ-003
Loading 3D model…
Loading 3D model…
Description

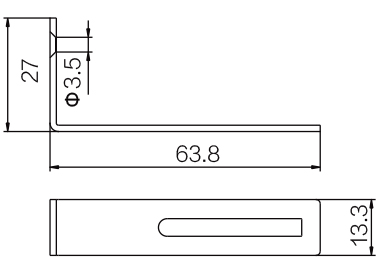

TJ-003 L-shaped pickguard bracket, 63.8 × 27 × 13.3 mm with φ3.5 mm countersunk hole.
Pickguard bracket specs
- Overall width 13.3 mm (0.524 in)
- Overall length 63.8 mm (2.512 in)
- Body height 27 mm (1.063 in)
- Hole diameter φ3.5 mm
- Reference Longitudinal adjustment slot on horizontal arm.
Hardware
- Material Steel / brass (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Longitudinal adjustment slot on horizontal arm.
Center-to-center distance between mounting holes on the bridge plate.
