Description

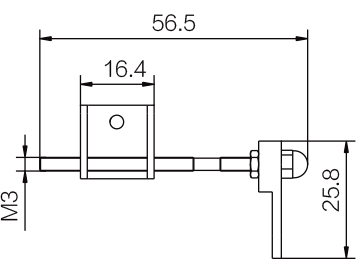

TJ-004 pickguard bracket rod assembly, M3 × 56.5 mm with 16.4 mm wide bracket and 25.8 mm L-foot.
Pickguard bracket specs
- Overall width 16.4 mm (0.646 in)
- Overall length 56.5 mm (2.224 in)
- Body height 25.8 mm (1.016 in)
- Thread M3
- Reference Rectangular center bracket with mounting hole; dome nut at L-bracket end.
Hardware
- Material Steel / brass (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Rectangular center bracket with mounting hole; dome nut at L-bracket end.
Center-to-center distance between mounting holes on the bridge plate.
