Description

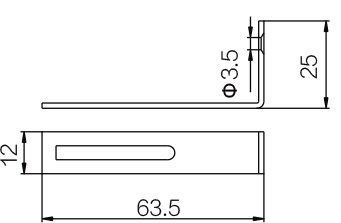

TJ-005 L-shaped pickguard bracket, 63.5 × 25 × 12 mm with φ3.5 mm mount point and adjustment slot.
Pickguard bracket specs
- Overall width 12 mm (0.472 in)
- Overall length 63.5 mm (2.5 in)
- Body height 25 mm (0.984 in)
- Hole diameter φ3.5 mm
- Reference Longitudinal adjustment slot on horizontal arm.
Hardware
- Material Steel / brass (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Longitudinal adjustment slot on horizontal arm.
Center-to-center distance between mounting holes on the bridge plate.
