ZG-P01-01

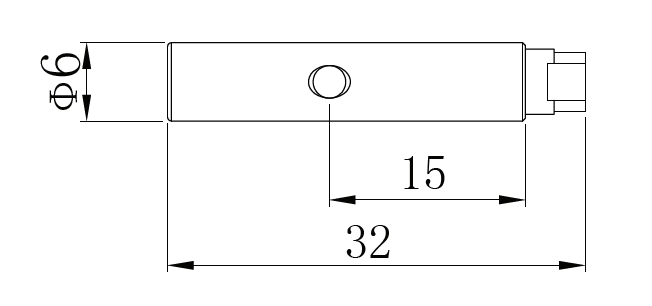

Technical drawingZG-P01-01
Description
ZG-P01-01 piezo sensor rod, φ6 mm outer diameter and 32 mm overall length with side mounting hole.
Piezo sensor specs
- Outer diameter φ6 mm
- Overall height 32 mm (1.26 in)
- Reference Side mounting hole center 15 mm from connector-end shoulder.
Hardware
- Material Piezo ceramic / metal composite
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Cylindrical rod with stepped connector end
- Single side mounting hole for bridge retention
About measurements
- Mount hole spacing
-
Side mounting hole center 15 mm from connector-end shoulder.
Center-to-center distance between mounting holes on the bridge plate.
