ZG-P02-12

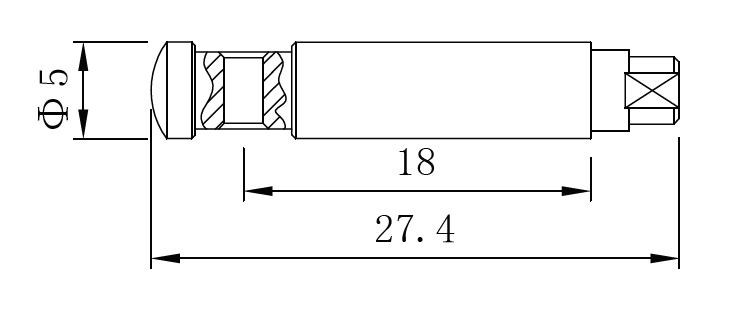

Technical drawingZG-P02-12
Description
ZG-P02-12 piezo sensor rod, φ5 mm outer diameter and 27.4 mm overall length with domed head.
Piezo sensor specs
- Outer diameter φ5 mm
- Overall height 27.4 mm (1.079 in)
- Reference Main cylindrical body section 18 mm; connector-end shoulder to tip not separately dimensioned.
Hardware
- Material Piezo ceramic / metal composite
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Domed head with recessed neck section
- Stepped connector end with flat terminal face
About measurements
- Mount hole spacing
-
Main cylindrical body section 18 mm; connector-end shoulder to tip not separately dimensioned.
Center-to-center distance between mounting holes on the bridge plate.
