ZG-P02-13

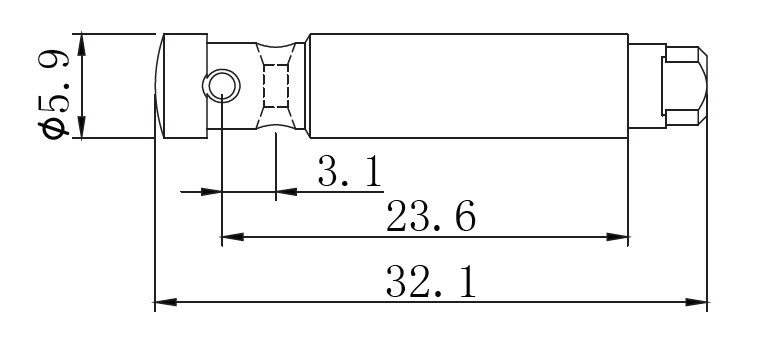

Technical drawingZG-P02-13
Description
ZG-P02-13 piezo sensor rod, φ5.9 mm cap diameter and 32.1 mm overall length with waist profile.
Piezo sensor specs
- Outer diameter φ5.9 mm
- Overall height 32.1 mm (1.264 in)
- Reference Mounting hole center 3.1 mm from waist neck; hole center to main-body shoulder 23.6 mm.
Hardware
- Material Piezo ceramic / metal composite
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Domed cap end with waist neck and side mounting hole
- Faceted connector tip for tool grip or keyed interface
About measurements
- Mount hole spacing
-
Mounting hole center 3.1 mm from waist neck; hole center to main-body shoulder 23.6 mm.
Center-to-center distance between mounting holes on the bridge plate.
