ZG-P02-06

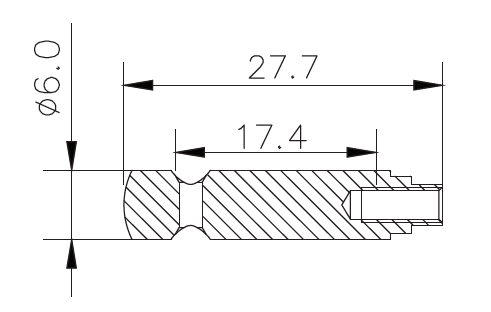

Technical drawingZG-P02-06
Description
ZG-P02-06 piezo sensor rod, φ6 mm outer diameter and 27.7 mm overall length with circumferential mounting groove.
Piezo sensor specs
- Outer diameter φ6 mm
- Overall height 27.7 mm (1.091 in)
- Reference Circumferential groove center 17.4 mm from rear end.
Hardware
- Material Piezo ceramic / metal composite
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Rounded sensing tip with circumferential retention groove
- Blind internal threaded bore at connector end
About measurements
- Mount hole spacing
-
Circumferential groove center 17.4 mm from rear end.
Center-to-center distance between mounting holes on the bridge plate.
