ZG-P06-06A

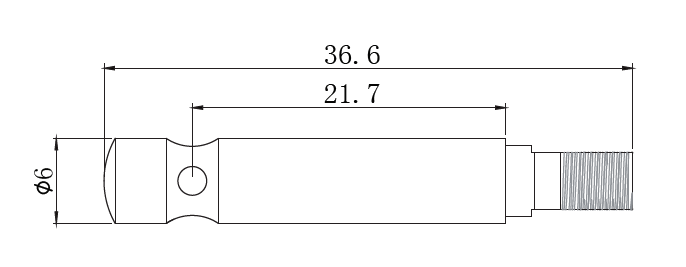

Technical drawingZG-P06-06A
Description
ZG-P06-06A piezo sensor rod, φ6 mm outer diameter and 36.6 mm overall length with domed head and side mounting hole.
Piezo sensor specs
- Outer diameter φ6 mm
- Overall height 36.6 mm (1.441 in)
- Reference Side mounting hole center 21.7 mm from connector-end shoulder.
Hardware
- Material Piezo ceramic / metal composite
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Domed sensing head with waist groove and side mounting hole
- Threaded stepped connector end on main cylindrical body
About measurements
- Mount hole spacing
-
Side mounting hole center 21.7 mm from connector-end shoulder.
Center-to-center distance between mounting holes on the bridge plate.
