Trem arms
Request a quote → A-01
A-01
A-01
Loading 3D model…
Loading 3D model…
Description

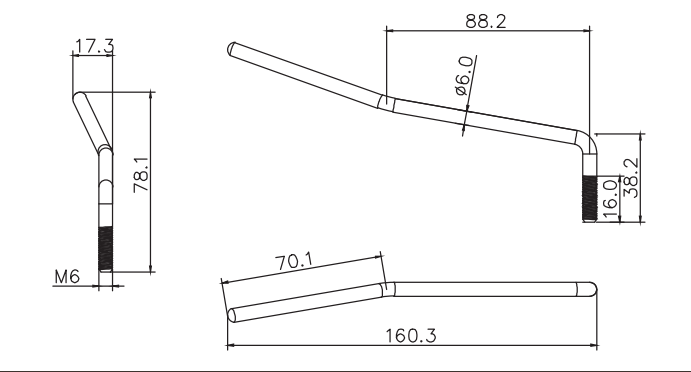

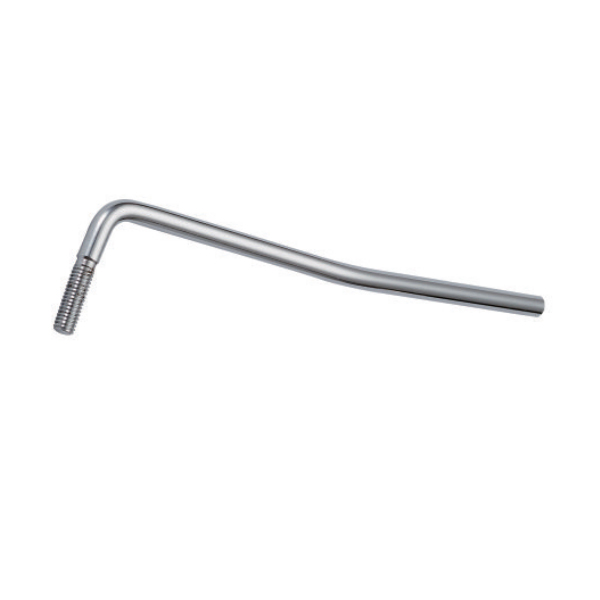

A-01 screw-in tremolo arm, φ6.0 mm rod with M6 thread, 160.3 mm overall length and 78.1 mm height.
Tremolo arm specs
- Mount type Screw-in tremolo arm (M6)
- Arm diameter 6 mm (0.236 in)
- Overall length 160.3 mm (6.311 in)
- Overall height 78.1 mm (3.075 in)
- Thread M6
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Two-bend arm profile
- 16 mm threaded section at base
