Trem arms
Request a quote → A-04
A-04
A-04
Loading 3D model…
Loading 3D model…
Description

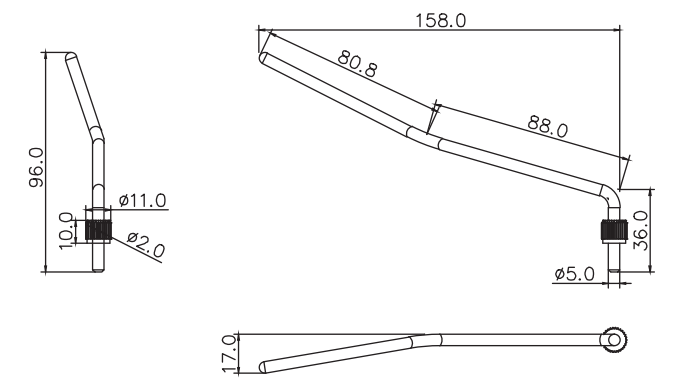

A-04 push-in tremolo arm with φ11 knurled collar, φ5.0 mm mount post, 158.0 mm length and 96.0 mm height.
Tremolo arm specs
- Mount type Push-in with knurled collar
- Arm diameter 5 mm (0.197 in)
- Overall length 158 mm (6.22 in)
- Overall height 96 mm (3.78 in)
- Lateral offset 17 mm (0.669 in)
- Mount post diameter φ5 mm
- Collar diameter φ11 mm
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 10 mm knurled collar height
- Two-bend arm with plastic tip
