Trem arms
Request a quote → A-03
A-03
A-03
Loading 3D model…
Loading 3D model…
Description

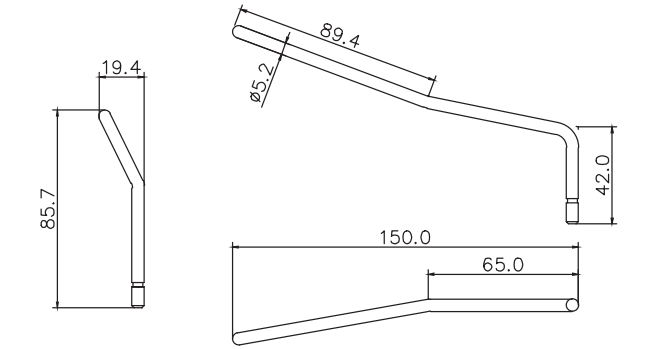

A-03 tremolo arm, φ5.2 mm rod, 150.0 mm overall length and 85.7 mm height with slotted anchor end.
Tremolo arm specs
- Mount type Push-in anchor with retention slot
- Arm diameter 5.2 mm (0.205 in)
- Overall length 150 mm (5.906 in)
- Overall height 85.7 mm (3.374 in)
- Lateral offset 19.4 mm (0.764 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Grooved anchor tip
- 89.4 mm angled upper segment
