Trem arms
Request a quote → A-02
A-02
A-02
Loading 3D model…
Loading 3D model…
Description

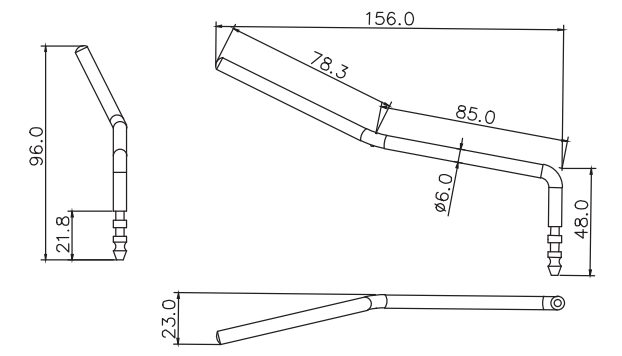

A-02 push-in tremolo arm, φ6.0 mm rod, 156.0 mm overall length, 96.0 mm height, barbed anchor end.
Tremolo arm specs
- Mount type Push-in barbed anchor
- Arm diameter 6 mm (0.236 in)
- Overall length 156 mm (6.142 in)
- Overall height 96 mm (3.78 in)
- Lateral offset 23 mm (0.906 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Barbed retention tip
- 23 mm lateral offset in plan view
