Trem arms
Request a quote → A-05
A-05
A-05
Loading 3D model…
Loading 3D model…
Description

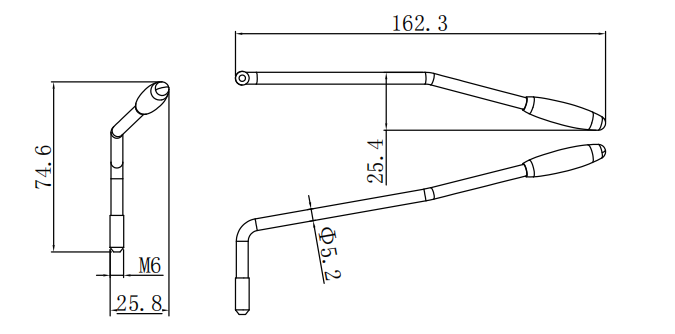

A-05 screw-in tremolo arm, φ5.2 mm rod with M6 thread, 162.3 mm length, 74.6 mm height, molded tip.
Tremolo arm specs
- Mount type Screw-in tremolo arm (M6)
- Arm diameter 5.2 mm (0.205 in)
- Overall length 162.3 mm (6.39 in)
- Overall height 74.6 mm (2.937 in)
- Lateral offset 25.4 mm (1 in)
- Thread M6
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Molded ergonomic handle tip
- 25.4 mm lateral offset in plan view
