Non tremolo guitar bridegs
Request a quote → BA-3007
BA-3007
BA-3007
Loading 3D model…
Loading 3D model…
Description

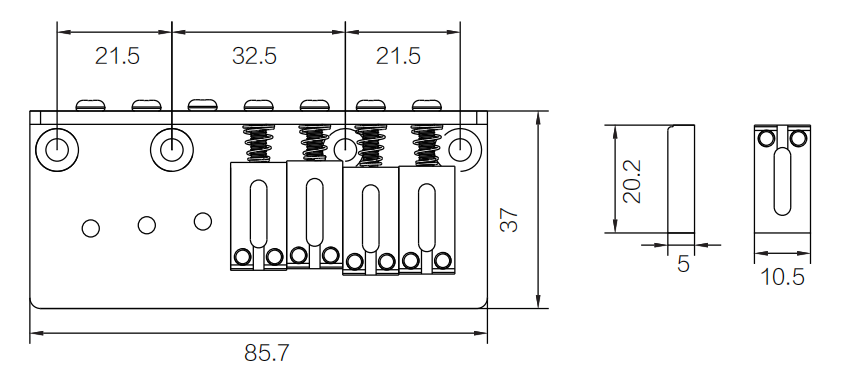

BA-3007 is a 4-string bass bridge with zinc saddles, 10.5 mm saddle width, and an 85.7 × 37 mm plate matching BA-3006 mount layout.
Bridge specs
- String count 4-string
- String spacing 10.5 mm (0.413 in)
- String spread 31.5 mm (1.24 in)
- Plate width 85.7 mm (3.374 in)
- Plate depth 37 mm (1.457 in)
- Mount hole spacing 75.5 mm (2.972 in)
- Mount pattern Top holes 21.5 / 32.5 / 21.5 mm pitch
- Saddle material Zinc alloy
- Saddle diameter 10.5 mm (0.413 in)
- Saddle height 5 mm (0.197 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- BA-3006 family variant
- Low-profile 37 mm plate
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
75.5 mm (2.972 in)
Center-to-center distance between mounting holes on the bridge plate.
