Jack Plates
Request a quote → F-1010
F-1010
F-1010
Loading 3D model…
Loading 3D model…
Description

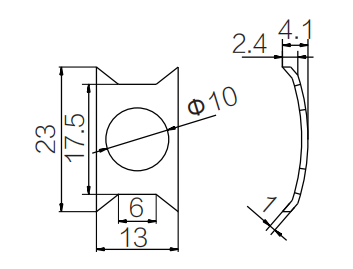

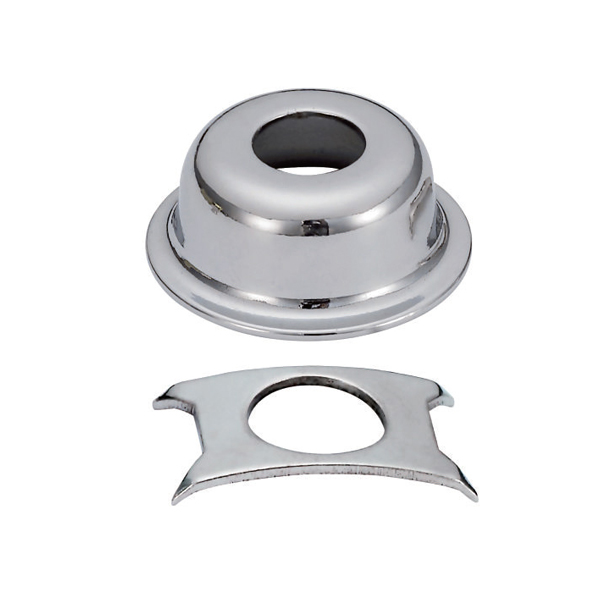

F-1010 output jack plate, 13 × 23 mm curved plate with φ10 mm jack bore and 1 mm material thickness.
Output jack plate specs
- Overall width 13 mm (0.512 in)
- Overall length 23 mm (0.906 in)
- Plate thickness 1 mm (0.039 in)
- Hole diameter φ10 mm
- Reference Top and bottom V-notch mounting (center-to-center spacing not dimensioned on drawing).
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Curved rectangular plate with concave top and bottom notches
- 4.1 mm total curved depth on 1 mm-thick material
About measurements
- Mount hole spacing
-
Top and bottom V-notch mounting (center-to-center spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
