Description

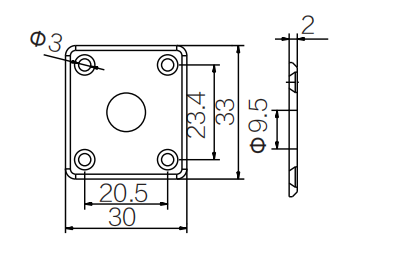

F-1014 output jack plate, 30 × 33 mm square plate with φ9.5 mm jack bore, 2 mm thickness, and four countersunk φ3 mm mounting holes.
Output jack plate specs
- Overall width 30 mm (1.181 in)
- Overall length 33 mm (1.299 in)
- Plate thickness 2 mm (0.079 in)
- Hole diameter φ9.5 mm
- Mount spacing 20.5 mm (0.807 in)
- Reference Four countersunk φ3 mm corner holes on 20.5 mm × 23.4 mm centers.
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Square plate with rounded corners and countersunk mount holes
- Four φ3 mm corner mounting holes on 20.5 mm × 23.4 mm layout
About measurements
- Mount hole spacing
-
20.5 mm (0.807 in)
Center-to-center distance between mounting holes on the bridge plate.
