Jack Plates
Request a quote → F-1012
F-1012
F-1012
Loading 3D model…
Loading 3D model…
Description

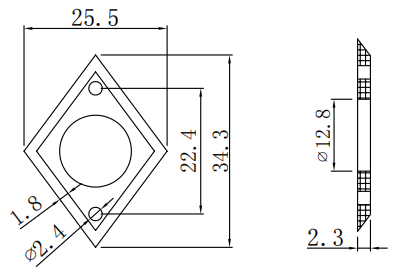

F-1012 output jack plate, 25.5 × 34.3 mm diamond plate with φ12.8 mm jack bore, 2.3 mm thickness, and two φ2.4 mm mounting holes.
Output jack plate specs
- Overall width 25.5 mm (1.004 in)
- Overall length 34.3 mm (1.35 in)
- Plate thickness 2.3 mm (0.091 in)
- Hole diameter φ12.8 mm
- Mount spacing 22.4 mm (0.882 in)
- Reference Two φ2.4 mm mounting holes on 22.4 mm vertical centers.
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Diamond outline with 1.8 mm beveled border
- Two φ2.4 mm mounting holes on 22.4 mm vertical centers
About measurements
- Mount hole spacing
-
22.4 mm (0.882 in)
Center-to-center distance between mounting holes on the bridge plate.
